Injet Hub Series

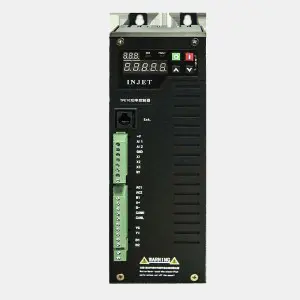

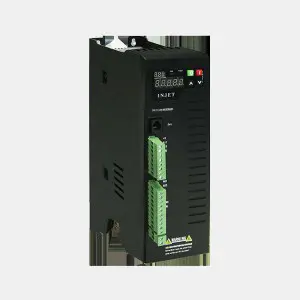

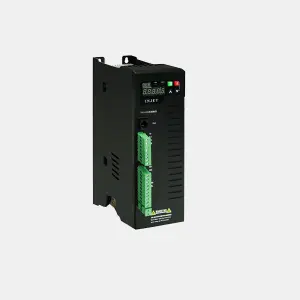

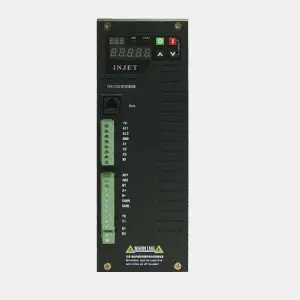

TPH10 series power controller

The TPH10 series power controller is a feature-rich and cost-effective product with a narrow body design to save lateral space in the cabinet. The advanced second-generation online power distribution technology greatly alleviates the current impact on the power grid. Products are widely used in float glass, kiln glass fiber, annealing furnace and other various industrial electric furnaces.

01020304

Key features

  • ● Full digital control, high precision and high stability
  • ● With RMS and average value control
  • ● Standard configuration RS485 communication, support Modbus RTU communication, expandable Profibus-DP, Profinet communication
  • ● With a variety of control methods to choose from
  • ● Support the second-generation patented power distribution option, effectively reducing the impact on the power grid and improving the security of power supply
  • ● LED keyboard display, easy to operate, support keyboard display external reference
  • ● Narrow body design, compact structure, easy installation

The main parameters

Basic Info

  • Main circuit power supply
  • 3PH/AC230V、400V、500V、690V，50/60Hz
  • Fan power supply
  • AC115V、AC230V，50/60Hz
  • control power
  • AC110V~240V，20W

output

  • The output voltage
  • 0~98% of main circuit power supply voltage (phase shift control)
  • Output current
  • 25A～700A
  • control precision
  • 1%
  • stability
  • ≤ 0.2%
  • operating mode
  • Phase-shift trigger, power adjustment fixed period, power adjustment variable period
  • control method
  • α、U、I、U2、I2、P
  • control signal
  • analog, digital, communication
  • load nature
  • Resistive load, inductive load

Interface description

  • analog input
  • 2 channels (AI1: DC 4～20mA; AI2: DC 0～5V/0～10V)
  • Analog output
  • 2 channels (DC 4～20mA/0～20mA)
  • switch input
  • 3-way always open
  • switch output
  • 1 way normally open
  • communication
  • Standard configuration RS485 communication, support Modbus RTU communication; expandable Profibus-DP, Profinet communication

Advantage

● Online power distribution
Reduce the impact on the power grid and improve the security of power supply

● A variety of communication methods
Support a variety of communication methods to meet the different needs of customers

● Wide range of applications
Can be widely used in glass fiber, steel metallurgy, machinery industry, vacuum industry, air separation industry, etc.

● Various control methods
Support α, U, I, U2, I2, P control
