PDB Series

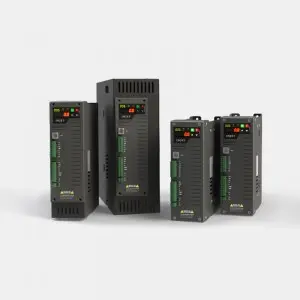

TPH10 series single-phase power controller
01
- ● Full digital control, high precision and high stability
- ● With effective value and average value control
- ● Multiple control modes are available for selection
- ● Support the second generation patented power distribution option, effectively reduce the impact on the power grid and improve the power supply security
- ● LED keyboard display, easy operation, support keyboard display external lead
- ● Narrow body design, compact structure and convenient installation
- ● Modbus RTU Profibus-DP, Profinet Standard configuration RS485 communication, support Modbus RTU communication; Expandable Profibus-DP and Profinet communication
Model specification:
series single-phase power controller, which adopts narrow body design, greatly saving installation space. It can be widely used in glass fiber industry, TFT glass forming and annealing, diamond growth and other occasions.
| Input | |||||||
| Main circuit power supply | AC230V、400V、500V、690V，50/60Hz | ||||||
| Control power supply | AC110V~240V，20W | ||||||
| Fan power supply | AC115V、AC230V，50/60Hz | ||||||
| Output | |||||||
| Output voltage | 0-98% of main loop power supply voltage (phase shift control) | ||||||
| Output current | 25A～700A | ||||||
| Performance index | |||||||
| Control accuracy | 1% | ||||||
| Stability | ≤ 0.2% | ||||||
| Control characteristics | |||||||
| Operation mode | phase shift triggering, power regulation fixed period, power regulation variable period | ||||||
| Control mode | α、U、I、U2、I2、P | ||||||
| Control signal | analog, digital, communication | ||||||
| Load property | resistive load, inductive load | ||||||
| Interface description | |||||||
| The analog input | （AI1:DC 4～20mA；AI2:DC 0～5V/0～10V）Analog input 2 ways | ||||||
| Analog output | （DC 4～20mA/0～20mA）Analog output 2 ways | ||||||
| Switch input | 3-way normally open | ||||||
| Switch output | 1-way normally open | ||||||
| Communication | Standard configuration RS485 communication, support Modbus RTU communication; Expandable Profibus-DP and Profinet communication | ||||||
Model selection
| Rated current | Rated voltage | Fan voltage | Communication parameters | Customized by the manufacturer |
| Model | Rated current (A) | Overall dimension (mm) | Weight (kg) | Cooling mode: |
| TPH10-25-S | 25 | 260×87×172 | 3.3 | Air cooling |
| TPH10-40-S | 40 | 3.3 | ||
| TPH10-75-S | 75 | 260×87×207 | 4 | |
| TPH10-100-S | 100 | 300×87×206 | 5 | Fan cooling |
| TPH10-150-S | 150 | 5.3 | ||
| TPH10-200-S | 200 | 355×125×247 | 8 | |
| TPH10-250-S | 250 | 8 | ||
| TPH10-350-S | 350 | 360×125×272 | 10 | |
| TPH10-450-S | 450 | 11 | ||
| TPH10-500-S | 500 | 11 | ||
| TPH10-600-S | 600 | 471×186×283 | 17 | |
| TPH10-700-S | 700 | 17 |
