PDB Series

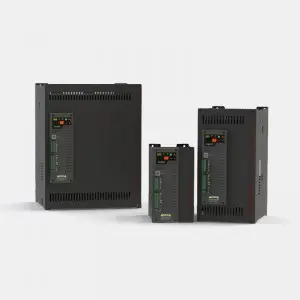

TPH10 series three-phase power controller
01
- ● Full digital control, high precision and high stability
- ● With effective value and average value control
- ● Multiple control modes are available for selection
- ● Support the second generation patented power distribution option, effectively reduce the impact on the power grid and improve the power supply security
- ● LED keyboard display, easy operation, support keyboard display external lead
- ● Narrow body design, compact structure and convenient installation
- ● Modbus RTU Profibus-DP, Profinet Standard configuration RS485 communication, support Modbus RTU communication; Expandable Profibus-DP and Profinet communication
Model specification:
TPH10 series three-phase power controller supports a wide range of rated current and can meet various applications, such as: electric melting, float glass forming, float glass annealing, steel annealing, lithium positive and negative electrode material sintering, roller kiln, mesh belt furnace, annealing furnace, aging furnace, quenching furnace, copper wire annealing, etc.
| Input |
| Main circuit power supply 3ФAC230V、400V、500V、690V，50/60Hz |
| Control power supply AC110V~240V、20W、50/60Hz |
| Fan power supply AC115V、AC230V，50/60Hz |
| Output |
| Output voltage: 0 ~ 98% of the main circuit power supply voltage (phase shift control) |
| Output current 25A～700A |
| Performance index |
| Control accuracy 1% |
| Stability ≤ 0.2% |
| Control characteristics |
| Operation mode: phase shift triggering, power regulation fixed period, power regulation variable period |
| Control mode α、U、I、U2、I2、P |
| Control signal (analog, digital, communication) |
| Load property: resistive load, inductive load |
| Interface description |
| AI1:DC 4～20mA；AI2:DC 0～5V/0～10V）Analog input (2 channels) |
| （DC 4～20mA/0～20mA）Analog output (2 channels) |
| Switch input: 3-way normally open |
| Switch output: 1-way normally open |
| Communication Standard configuration RS485 communication, support Modbus RTU communication; Expandable Profibus-DP and Profinet communication |
Model selection
| Rated current | Rated voltage | Fan voltage | Communication parameters | Customized by the manufacturer |
| Model | Rated current (A) | Overall dimension (mm) | Weight (kg) | Cooling mode: |
| TPH10-25-T | 25 | 260×146×213 | 5.3 | Air cooling |
| TPH10-40-T | 40 | 260×146×223 | 6.5 | Fan cooling |
| TPH10-75-T | 75 | 6.5 | ||
| TPH10-100-T | 100 | 350×146×243 | 9.5 | |
| TPH10-150-T | 150 | 10 | ||
| TPH10-200-T | 200 | 395×206×273 | 11.5 | |
| TPH10-250-T | 250 | 16 | ||
| TPH10-350-T | 350 | 16 | ||
| TPH10-450-T | 450 | 400×311×303 | 26 | |
| TPH10-500-T | 500 | 26 | ||
| TPH10-600-T | 600 | 465×366×303 | 33 | |
| TPH10-700-T | 700 | 33 |
