TPM3 Series Power Controller

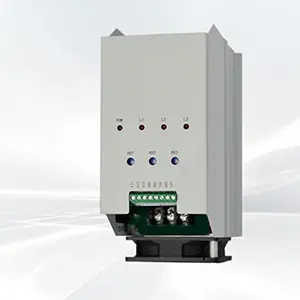

The TPM3 series power controller adopts a modular design idea, and the product consists of an interface module and a power module. A maximum of 16 power modules can be connected to one interface module, and each power module integrates 6 heating circuits. One TPM3 series product can realize heating control for up to 96 single-phase loads. The products are mainly used in multi-temperature zone control occasions such as semiconductor epitaxy furnace, automobile spraying and drying.

Key features

● Modular design, interface module + power module structure;
● The main circuit of the power module supports single-phase and three-phase power supply modes;

● Each circuit has built-in fast fuse
● Compact structure and simple operation

● Bottom fan, longer service life
● The interface module adopts bus control, which is convenient for wiring

The main parameters

Model specification:

Input	Main circuit power supply: AC230V、400V, 50/60Hz	Control power supply: DC24V, 10W, 50/60Hz
Output	Output current: 5~20A
Performance index	Control accuracy: 1%
Control characteristic	Operation mode: phase shifting and zero crossing	Control signal: communication bus
Control characteristic	Load property: resistive load
Note: the product continues to innovate and the performance continues to improve. This parameter description is for reference only.
