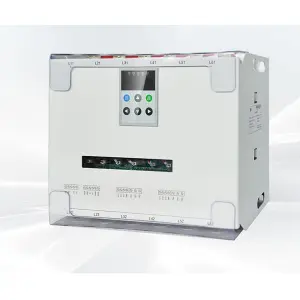

TPM5 Series Power Controller

The TPM5 series power controller adopts the module design idea and integrates up to 6 circuits inside. Products are mainly used in diffusion furnaces, PECVD, epitaxy furnaces, etc.

01

Key features

  • ● Small size, 6 power regulation circuits are integrated inside, each circuit is independently controlled
  • ● Each circuit with built-in fast fuse
  • ● Compact structure and simple operation
  • ● Pull-down cover for easy wiring and maintenance
  • ● Adopt zero-crossing control, no pollution to power grid
  • ● Bottom fan, longer service life
  • ● Each loop has an independent control board, which does not affect each other
  • ● Integrate 6 independent 4~20mA given signals, with current limiting function

The main parameters

Model specification:

Input Main circuit power supply: AC230V、400V, 50/60Hz Control power supply: DC24V, 10W, 50/60Hz
Fan power supply: AC230V、10W, 50/60Hz
Output Output current: 120A、150A、200A(Special demand can be customized)
Performance index Control accuracy: 1%
Control characteristic Operation mode: zero crossing fixed period Control signal: 4mA~20mA
Load property: resistive load
Interface description Analog input: 1~6 way DC4mA~20mA Switch input: 1-way normally closed contact (overheating signal)
Note: the product continues to innovate and the performance continues to improve. This parameter description is for reference only.
