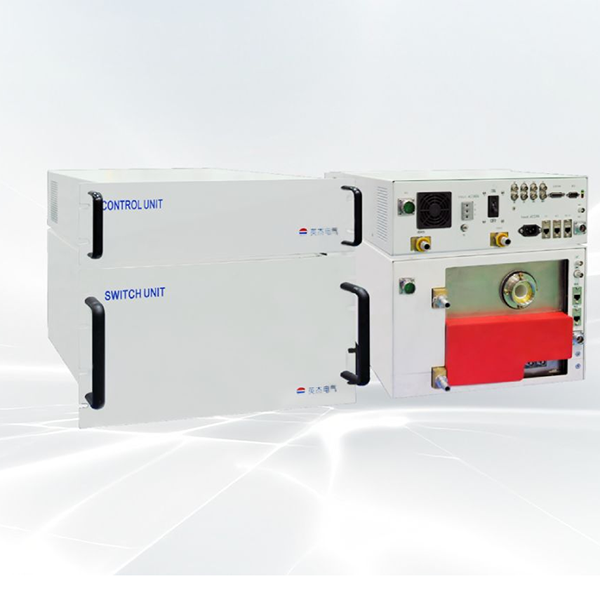

Modulator PS 1000 Series Solid State Modulator

The PS1000 Series Solid State Modulator is a high-voltage pulse power supply using all-solid-state switching and high-ratio pulse transformer technology. It is used to drive various magnetron which used in the fields of the medical radiotherapy, industrial non-destructive testing, customs security monitoring and other application systems.

Key features

● Waveform correction technology: when the load impedance changes, the high-voltage output waveform can be corrected to meet user application requirements

● Fast ignition protection and strong ignition resistance
● High reliability: derived from unique pulse modulation technology, excellent system design and strict quality control

● Function modularization: function modularization scheme is adopted in the PS1000 series modulator and therefore easy to assemble as the different customer requirements
● Low maintenance cost

The main parameters

Input	Main circuit power supply: 3ΦAC360V~420V, 50/60Hz	Control power supply: AC200~240V, 50/60Hz
Output	Pulse voltage: 32kV~52kV	Pulse current: 50A~120A
	Max. pulse power: 6.2MW	Max. average power: 8kW
	Voltage regulation accuracy: 0.1%	Pulse width: 1 μ s~5 μ S (adjustment step 0.1 μ s)
	Repetition frequency: 1Hz ~ 400Hz (adjustment step: 1Hz)	Max. working ratio: 0.12%
	Filament power supply: DC 25V 15A，constant current and voltage limiting	Filament power instability: ＜0.5%
Others	Options: electron gun power supply, titanium pump power supply, AFC, online monitoring system, etc.
Others	Cooling mode: water cooling	Dimension: customized according to customer requirements
Note: the product continues to innovate and the performance continues to improve. This parameter description is for reference only.
