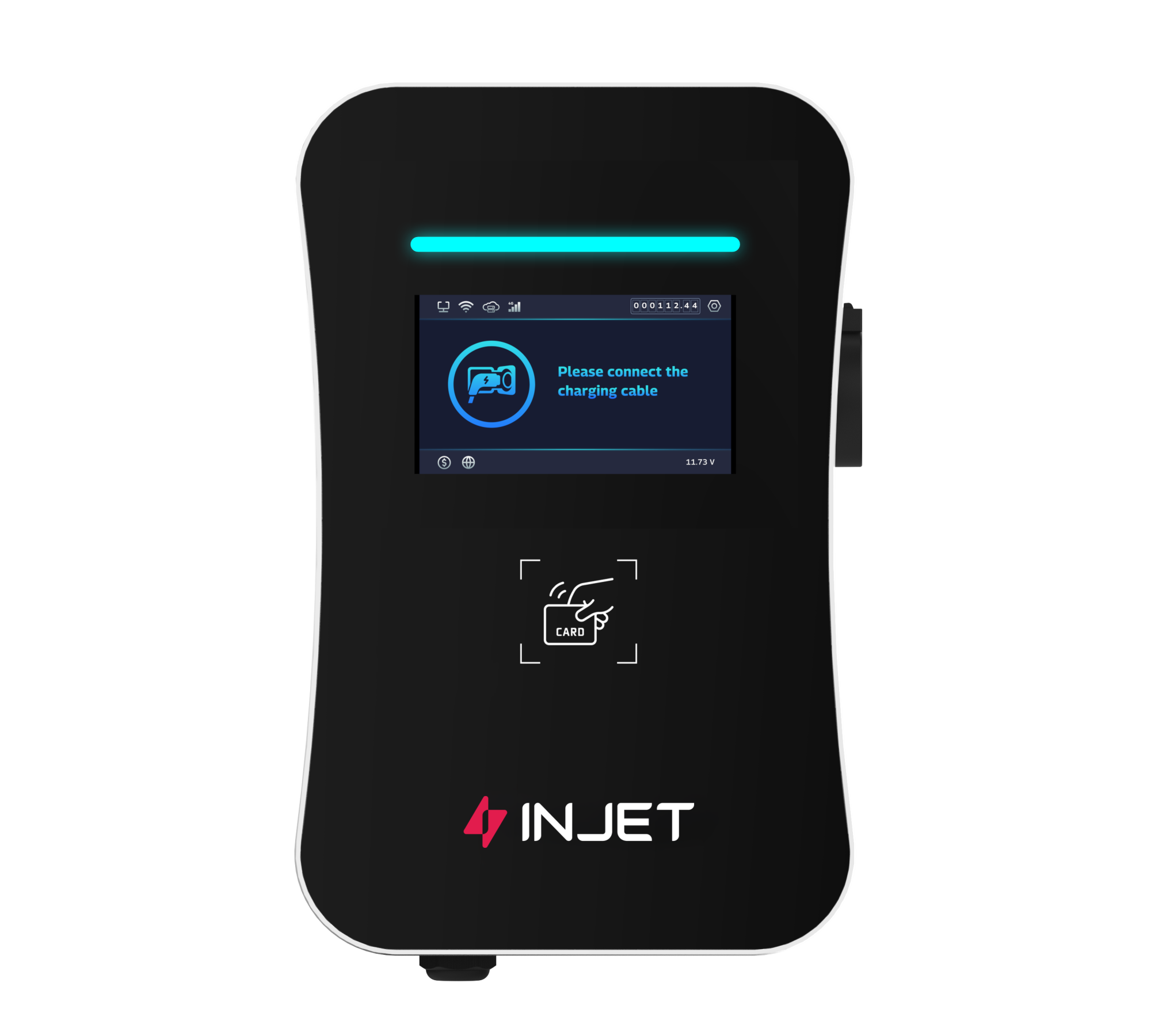

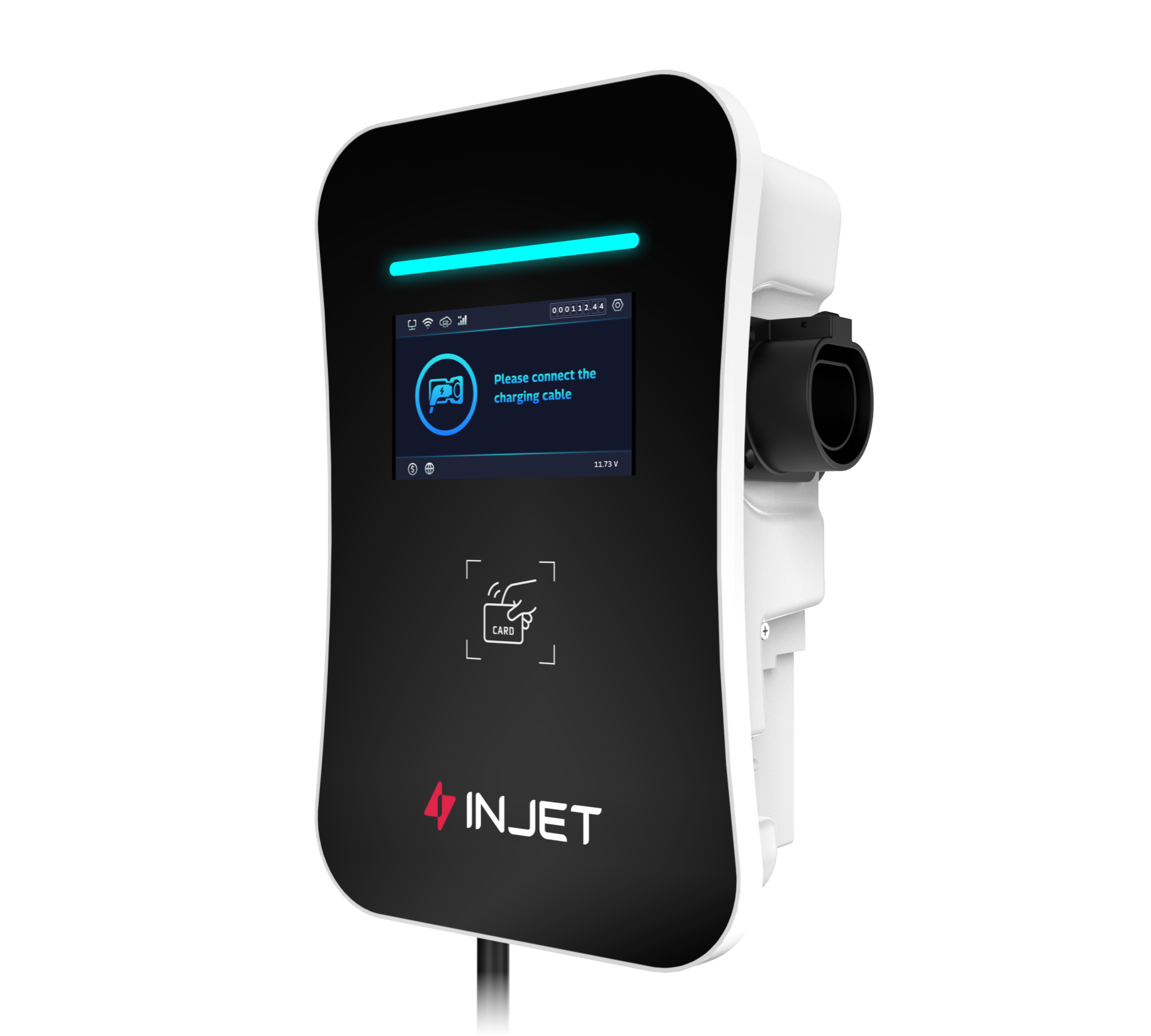

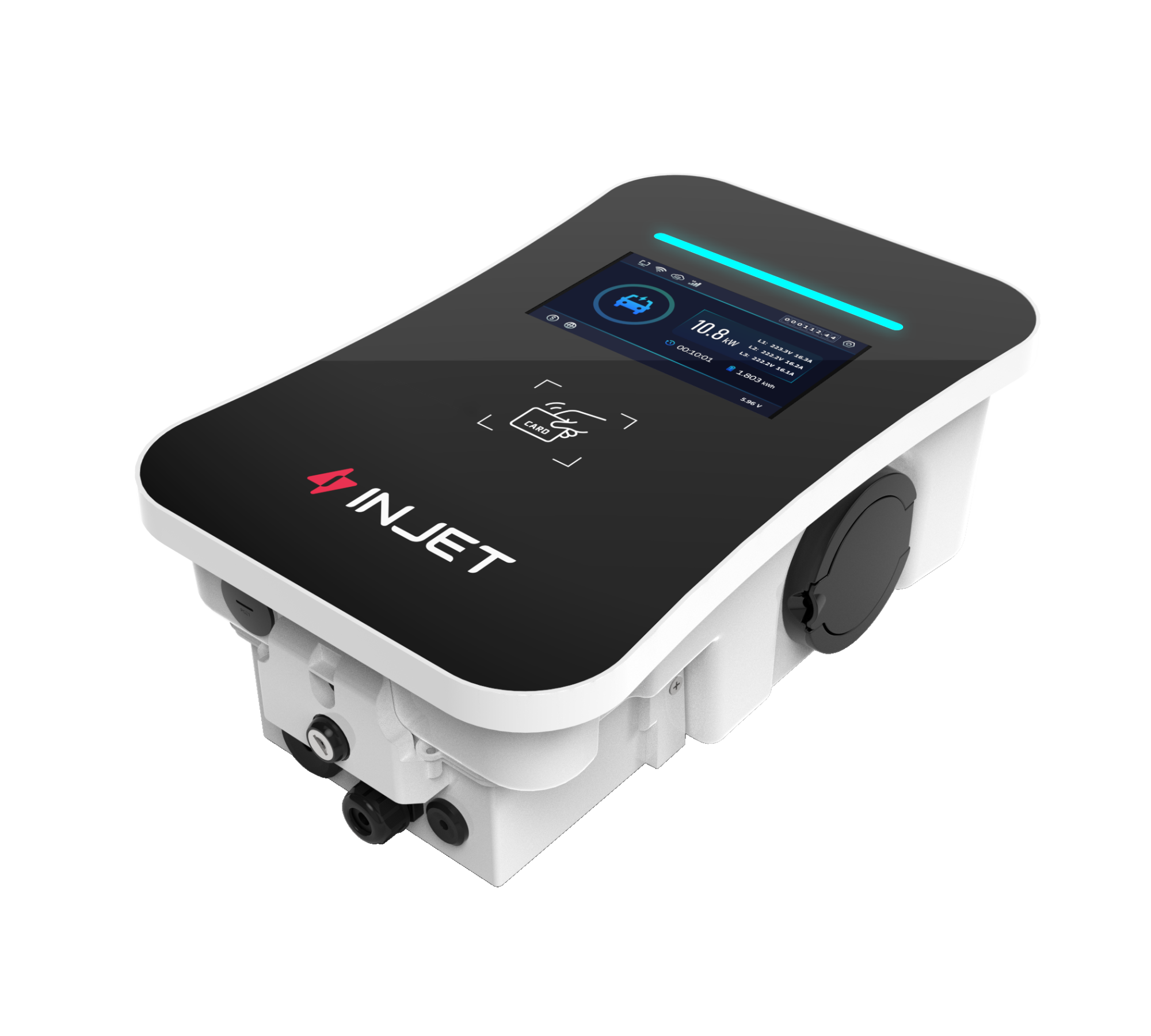

Injet Swift 2.0 Business
The Injet Swift 2.0 Business is a commercial AC EV charger engineered for workplaces, office parks, parking facilities, and destination charging sites where reliable operation and accurate energy billing are essential. Featuring a 7-inch touch screen, MID-certified metering with optional German Eichrecht compliance, and Injet's unique separate hub design, it simplifies installation while providing the transparency and connectivity required for commercial charging operations.
Product advantages
Installation & Long-Term Reliability
Smart Energy Management
Built for Commercial Deployment
German-Engineered Click-to-Install HubA separate wall-mounted power hub is wired first by the electrician; the main charging unit then simply hangs and clicks into place, automatically completing the connection. This reduces on-site installation time by up to 50% — a meaningful saving on labour-intensive European installs.
Maintenance Without Touching the WiringIf a unit ever needs servicing or upgrading, the main charger can be swapped out in seconds without disturbing the fixed wall wiring, minimising downtime and future service costs.
Built for the OutdoorsAn IP65 and IK10 rated enclosure ensures reliable operation through rain, snow, and dust, with a precision-engineered hub connection that remains fully sealed even with the convenient mounting system.
Dynamic Load BalancingPower Boost, Eco, and Eco+ modes intelligently manage load across the site, ensuring safe and efficient charging without overloading the local grid connection, even during high-demand periods.
Power Sharing Across Up to 10 UnitsDynamically distribute available power across multiple chargers, ideal for sites with limited grid capacity or high vehicle turnover — improving overall site charging efficiency.
Solar Surplus ChargingAutomatically detects and prioritises available solar generation, reducing electricity costs while making the most of on-site renewable energy.
Commercial Connectivity ReadyEquipped with WiFi 6, Bluetooth, Ethernet, and optional integrated 4G, Swift 2.0 Business stays connected even where wired or wireless networks are limited, ensuring reliable backend communication for commercial charging operations.
Revenue-Ready MeteringBuilt-in MID-certified metering with optional German Eichrecht compliance enables accurate, auditable electricity billing for commercial charging, fleet reimbursement, and public charging applications.
Flexible Authentication OptionsChoose Payter for frictionless access, or RFID card, roaming and app-based access protection, depending on the site's operational needs.
Open Network CompatibilityFull OCPP 1.6J support (with OCPP 2.0.1 available as a future upgrade), alongside ModBus TCP/RTU, WiFi 6, Bluetooth, Ethernet, RS485, and optional 4G — connecting easily into any backend management platform.
Certified for European MarketsCE, RoHS, LVD, and RED approved, with Type A 30mA + DC 6mA RCD protection and OCA Level 3 compliance built in as standard.
specification
Download the Injet datasheets
Acess the ful technicaldocumentation for the HanYuan distributed charging system, including power cabinet and dispenserspecifications, dimensions,connector options,and installation requirements.
Download Datasheets
Basic Info
| Maximum Power | 11kW/16A@400VAC 22kW/32A@400VAC |
| Tethered / Untethered | Optional |
| Plug & Cable | Type 2 with 5/7.5 Meters Cable |
| Dimension (H*W*D, mm) | 416*266*150 |
| Material | Tempered Glass Front + Metal Plate Black |
| Colour | Black Front + White Back |
| Indicator & Display | 7-inch LED touch screen with 1 indicating light strip |
Safety
| Ingress Protection | IP65, IK10 |
| Residual Current Protection | Type A 30mA+DC 6mA |
| Certification | CE(LVD,RED),RoHS |
| Certification Standard | EN IEC 61851-1,EN IEC 61851-21-2 |
| Protection | Residual Current Protection/Over Load Protection/Over/Under Voltage Protection/Short Circuit Protection/Earth Leakage Protection/Ground Protection/Surge Protection/Over Temperature |
Others
| RS485 | Yes |
| OCPP 1.6J | Yes,ready for OCPP2.0.1 |
| Dynamic Load Balancing | Yes,optional APCC-1R/3R (Load balancing controller produced by Injet)required or external smart meter |
| PV Surplus Charging | Yes, Compatible With External Smart Meter |
| Measurement | Built-in AC smart MID/PTB meter |
content hub
More
related products
Injet Swift 2.0 Business
Injet Vision Pro
Injet Eco
FAQ
1. How can I manage multiple EV chargers across my business?
Managing multiple chargers doesn't have to be complicated. Swift Business supports OCPP-compatible charging management platforms, allowing operators to remotely monitor charger status, manage user access, configure pricing, track energy consumption, and perform software updates from a centralized dashboard. This helps businesses reduce maintenance effort while improving the overall charging experience for employees, visitors, and fleet drivers.
2. Is Swift Business suitable for workplace and destination charging?
Yes. Swift Business is designed specifically for commercial charging applications where reliability and ease of management are essential. It is ideal for office buildings, hotels, shopping centers, apartment complexes, public parking facilities, and workplaces looking to provide convenient EV charging while supporting future growth in electric vehicle adoption.
3. How can I prevent electrical overload when installing multiple chargers?
As more EV chargers are installed, managing available electrical capacity becomes increasingly important. Swift Business supports intelligent load management, automatically balancing available power across connected chargers to help prevent overloads while maximizing the utilization of existing electrical infrastructure. This reduces upgrade costs and allows more charging points to be installed without unnecessary grid expansion.
4. Can employees, tenants, and visitors use the same charging system?
Yes. Swift Business supports multiple authentication and access management options, allowing different user groups to share the same charging infrastructure. Businesses can assign charging permissions, monitor usage, and implement billing or access policies through compatible charging management software, making it easy to serve employees, tenants, visitors, and fleet vehicles within one unified system.
5. What should I consider when choosing a commercial AC charger?
Beyond charging speed, commercial buyers should evaluate software compatibility, scalability, reliability, user management, and long-term operating costs. Swift Business combines smart connectivity, commercial-grade durability, and flexible deployment options to help businesses build charging infrastructure that can grow alongside increasing EV demand while maintaining a positive user experience.
