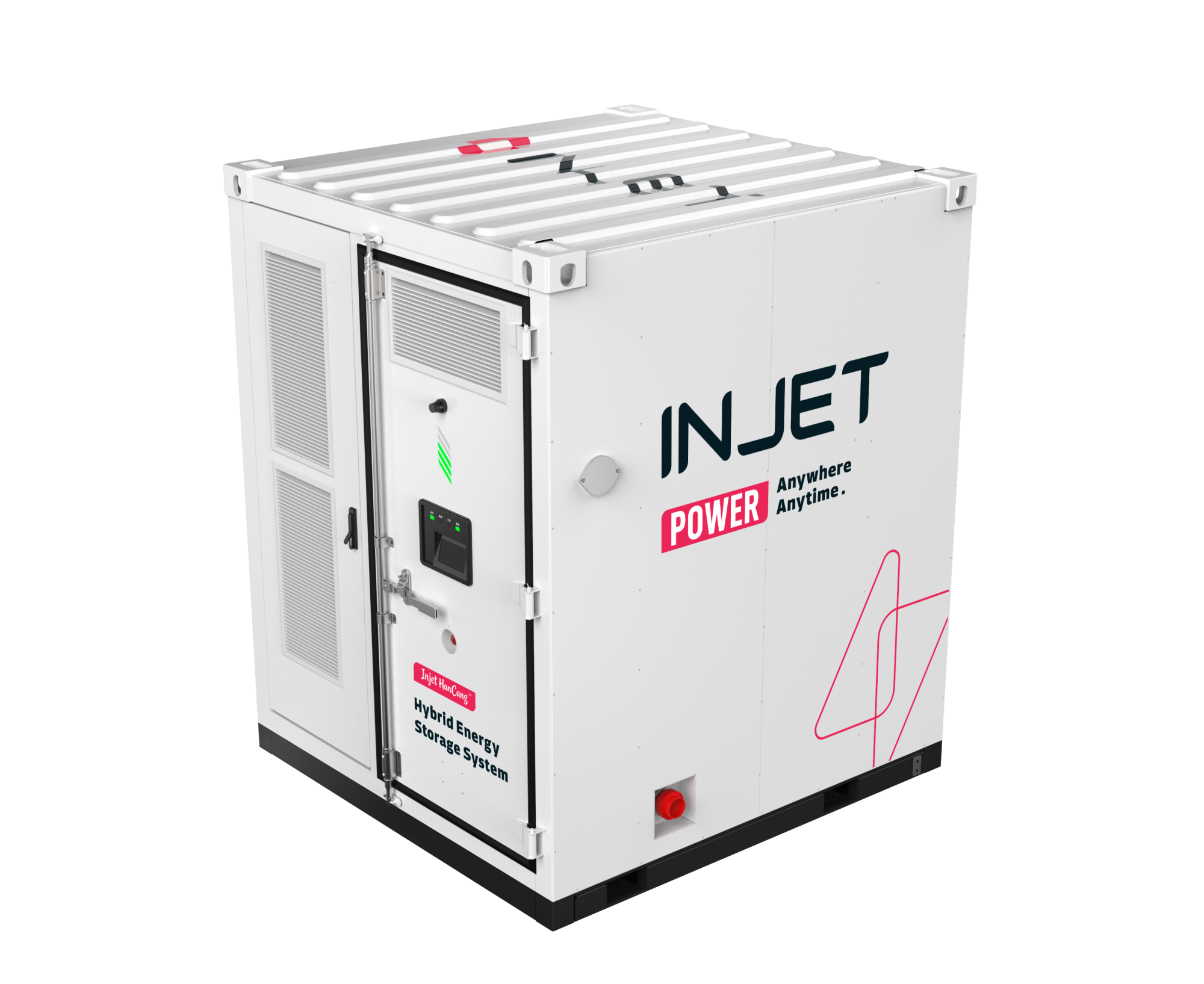

Injet HanCang (261kWh)
The Injet HanCang 261 is the compact-capacity model within the Injet HanCang hybrid energy storage system family. Integrating battery energy storage, photovoltaic generation, diesel backup, and Injet's self-developed Energy Management System (EMS) into one factory-built platform, HanCang 261 delivers intelligent hybrid power with rapid deployment, simplified operation, and dependable performance. Designed around the same proven architecture as the HanCang 522, it offers identical energy management, safety, and hybrid microgrid capabilities in a more compact 261kWh configuration.
Product advantages
Rapid Deployment & Simplified Installation
Intelligent Hybrid Energy Management
Built for Reliable Outdoor Operation
Factory-Built Turnkey Energy SolutionHanCang 261 integrates battery storage, PV interfaces, diesel generator connection, liquid cooling, fire protection, EMS, and control systems into one fully pre-engineered container. Every unit is factory assembled, commissioned, and tested before delivery, minimizing installation complexity while reducing project timelines.
Power Ready in Days, Not MonthsUnlike conventional power infrastructure requiring extensive site construction and lengthy utility coordination, HanCang can be transported, positioned, and commissioned in as little as one week—providing reliable power whenever and wherever projects demand it.
Compact Configuration for Flexible DeploymentThe 261kWh model combines the complete HanCang hybrid microgrid platform within a smaller footprint while supporting both top lifting and forklift transportation, making deployment and relocation easier without compromising system functionality.
Self-Developed EMS Maximizes Every Energy SourceInjet's proprietary Energy Management System intelligently coordinates photovoltaic generation, battery storage, diesel generation, and utility power using a dynamic "PV First, Battery Second, Generator Last" strategy, maximizing renewable energy utilization while minimizing fuel consumption and operating costs.
Millisecond Switching for Continuous OperationAutomatically switch between grid, battery, photovoltaic, and diesel power in milliseconds without noticeable voltage drops or service interruption, maintaining stable operation for critical equipment under changing site conditions.
Cloud-Based Monitoring and Predictive MaintenanceThe integrated cloud platform enables real-time equipment monitoring, remote diagnostics, parameter configuration, operational history, and intelligent fault alerts. Predictive maintenance helps reduce on-site service visits while supporting reliable unattended operation.
Handles Demanding Electrical LoadsHanCang supports 100% three-phase unbalanced loads together with short-term overload capability up to 200% rated output, enabling reliable operation of demanding electrical equipment without unnecessary shutdowns.
Comprehensive Multi-Layer Safety ProtectionA coordinated safety architecture combines intelligent BMS monitoring, proactive safety diagnostics, PACK-level fire suppression, and container-wide fire protection to safeguard personnel, batteries, and critical assets throughout the system lifecycle.
Reliable Performance in Harsh EnvironmentsFeaturing an IP54-rated enclosure, C3 corrosion protection, intelligent liquid cooling, and operation at elevations up to 4,000 metres, HanCang delivers dependable performance across challenging outdoor environments while maintaining long-term system reliability.
specification
Download the Injet datasheets
Acess the ful technicaldocumentation for the HanYuan distributed charging system, including power cabinet and dispenserspecifications, dimensions,connector options,and installation requirements.
Download Datasheets
Battery
| Cell Specification | LiFePO4 |
| Rated Capacity | 261.2kWh |
| Rated Voltage | 832V |
| Operating Voltage Range | 702V-949V |
| Rated Charge/Discharge Current | 157A/157A |
| Max. Charge/Discharge Current | 314A/314A (≤3s) |
| DOD | 95%DOD |
| Cycle Life | 6000 cycles @70% EOL |
| Cooling Method | Intelligent Liquid Cooling |
AC Output
| Rated Power | 125kW |
| Max. Output Capacity | 250kVA |
| Rated Output Voltage | 380V (-10%~15%) |
| Rated Output Frequency | 50Hz |
| Power Supply System | TN-S |
| Wiring Method | 3W+N |
| THDu | <3% (rated power) |
Others
| Dimensions (W*D*H) | 1940*2025*2430mm |
| Weight | ~3.6t |
| IP Rating | IP54 |
| Operating Humidity | ≤95%RH, non-condensing |
| Operating Temperature | -20~50℃ (derated above 45℃) |
| Max. Operating Altitude | 4000m (derated above 3000m) |
| Local Monitoring | LCD Touch Screen |
| Remote Monitoring | Web Platform |
cases
content hub
More
related products
Injet HanCang (261kWh)

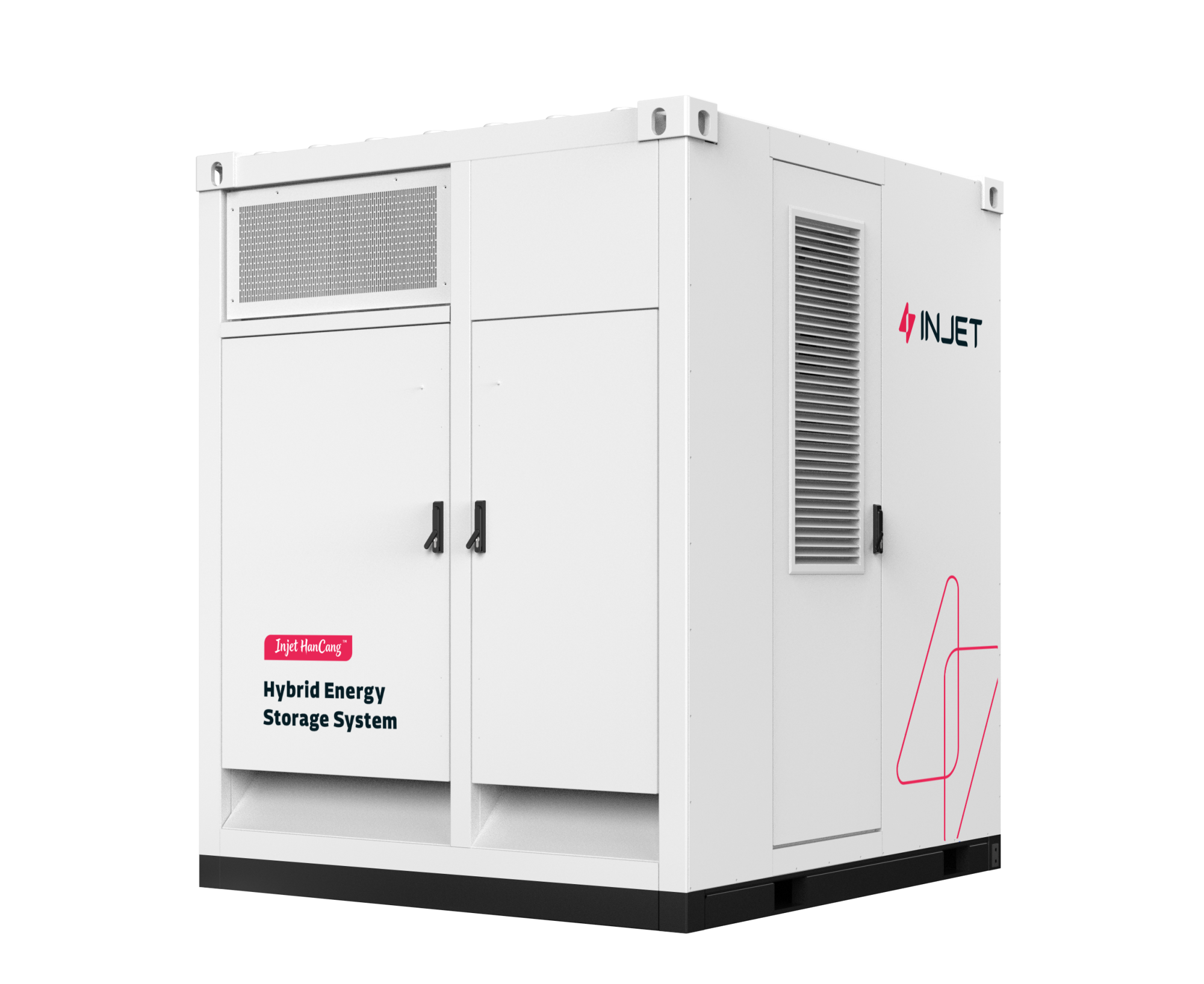

Injet HanCang (522kWh)
FAQ
1. How can I provide reliable power at temporary or remote project sites?
Temporary projects often require dependable electricity before permanent infrastructure is available. HanCang 261 combines battery storage, photovoltaic integration, diesel backup, and intelligent energy management into one compact containerized system that can be rapidly deployed, providing reliable power for construction sites, telecom stations, emergency response, and remote facilities.
2. Is HanCang 261 easy to transport between project locations?
Yes. Mobility is one of HanCang 261's key advantages. Its compact containerized design supports both forklift handling and top lifting, making transportation, relocation, and installation significantly easier than conventional power systems. This flexibility is especially valuable for projects where power requirements frequently move from one location to another.
3. How quickly can HanCang 261 be deployed?
Unlike traditional power infrastructure that may require extensive civil works and lengthy installation, HanCang 261 is factory assembled, tested, and commissioned before delivery. Under typical project conditions, the system can be transported, installed, and put into operation in as little as one week, helping projects gain access to reliable power much faster.
4. Can HanCang 261 help reduce fuel costs?
Absolutely. Rather than relying solely on diesel generators, HanCang 261 intelligently manages photovoltaic generation, battery storage, utility power, and generator backup using Injet's proprietary EMS. By maximizing renewable energy utilization and minimizing unnecessary generator operation, the system helps reduce fuel consumption and lower operating expenses.
5. What applications is HanCang 261 designed for?
HanCang 261 is ideal for projects requiring compact, transportable, and rapidly deployable power solutions. Typical applications include telecommunications infrastructure, temporary construction sites, disaster recovery, remote facilities, distributed energy systems, island power supply, and emergency operations where reliable electricity is essential.
6. Why choose a containerized hybrid energy storage system instead of conventional generators?
While diesel generators provide dependable power, they often involve high fuel consumption, frequent maintenance, and significant emissions. A containerized hybrid energy storage system combines multiple energy sources under intelligent control, allowing projects to improve fuel efficiency, reduce maintenance requirements, lower emissions, and increase operational flexibility while maintaining reliable power wherever it is needed.
