Injet Eco
The Injet Eco is a compact, flexible AC EV charger designed for homes, semi-public sites, and small commercial installations alike. With smart local energy management, secure OCPP-based connectivity, and a straightforward push-to-install design, Eco delivers cost-effective, future-ready charging — whether you're an installer, a homeowner, or a charge point operator managing a network.
Product advantages
Compact, Effortless Installation
Smart Energy Management
Safety & European Compliance
Push-to-Install DesignA streamlined mounting mechanism allows installers to complete setup quickly, reducing labour time and overall total cost of ownership.
Compact, Wall-Mounted FootprintAt just 260 × 115mm, the Eco fits discreetly into homes, apartment buildings, and small commercial sites without dominating the wall space.

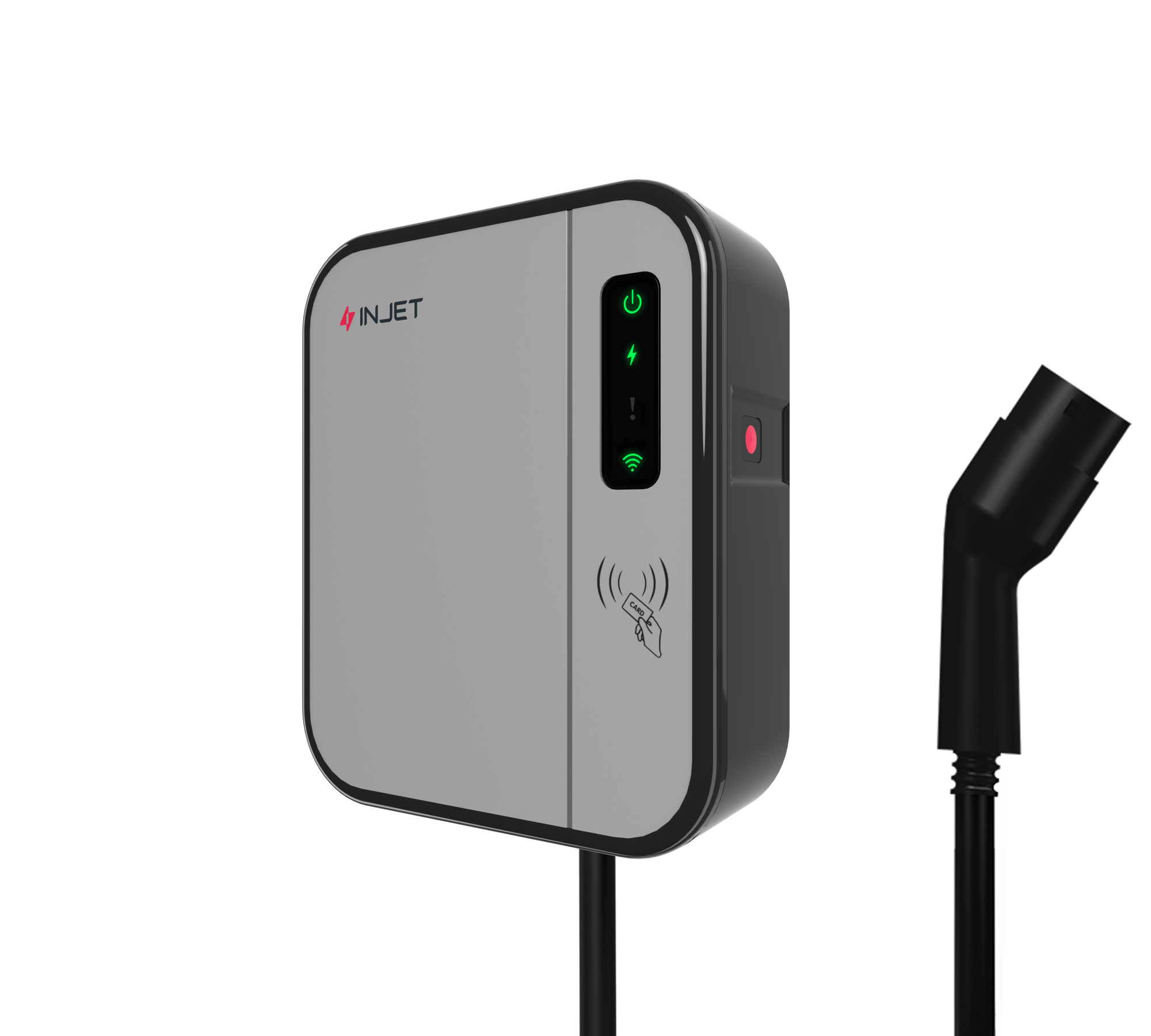

Tethered or Untethered OptionsFlexible cable configuration to suit different site layouts and user preferences, with clear LED status indicators showing charging state at a glance.
Local Energy Management with Load SharingConnects with home or site energy systems to balance demand intelligently, helping avoid overloading the existing electrical supply.
Solar Surplus ChargingAutomatically detects and prioritises available solar generation, helping homeowners charge using clean, self-generated energy and reduce reliance on grid electricity.
Off-Peak Scheduling via AppWiFi 6 and optional 4G connectivity enable remote scheduling and monitoring, allowing charging sessions to run during cheaper off-peak electricity periods automatically.
Smart Linux-Based System Supports scheduled charging, adjustable power output, and personalised settings for a seamless home charging experience.
Engineered for European ClimatesAn IP65 rating provides superior protection against dust and water, with reliable operation from -30°C to +50°C — suitable for both Scandinavian winters and Mediterranean summers.
Universal European CompatibilityBuilt to the IEC 62196-2 standard with a universal Type 2 socket or tethered cable, the Injet Eco is fully CE certified and compatible with all major European EV brands.
Integrated Leakage Protection A built-in Type A RCD with 6mA DC leakage detection meets IEC 61851 requirements, removing the need for a costly external Type B RCD.
Secure Access Control Keep charging sessions secure, while OCPP 1.6J compatibility ensures smooth integration with charge point operator networks.
specification
Download the Injet datasheets
Acess the ful technicaldocumentation for the HanYuan distributed charging system, including power cabinet and dispenserspecifications, dimensions,connector options,and installation requirements.
Download Datasheets
Basic Info
| Maximum Power | 7kW/32A@230VAC 11kW/16A@400VAC 22kW/32A@400VAC |
| Tethered / Untethered | Optional |
| Plug & Cable | Type 2 with 5/7.5 Meters Cable, Type2 Socket |
| Dimension (H*W*D, mm) | 310*260*115 |
| Material | Plastic |
| Colour | Grey |
| Indicator & Display | LED light |
Safety
| Ingress Protection | IP65, IK10 |
| Residual Current Protection | Type A 30mA+DC 6mA |
| Certification | CE(LVD,RED),RoHS |
| Certification Standard | EN IEC 61851-1,EN IEC 61851-21-2 |
| Protection | Residual Current Protection/Over Load Protection/Over/Under Voltage Protection/Short Circuit Protection/Earth Leakage Protection/Ground Protection/Surge Protection/Over Temperature/PEN for UK/ Tamper-Protection Boundary for UK |
Others
| RS485 | Yes |
| OCPP 1.6J | Optional |
| Dynamic Load Balancing | Yes,optional APCC-1R/3R (Load balancing controller produced by Injet)required or external smart meter |
| PV Surplus Charging | Yes, Compatible With External Smart Meter |
| Measurement | On-board Metering |
cases
content hub
More
2026-01-14
EV Charging Software Solution – How Injet Powers Smart Public and Home Charging
Learn Detail
related products
Injet Vision Pro
Injet Eco
Injet Swift 2.0 Smart
FAQ
1. Do I need a smart charger for everyday home charging?
Not every homeowner needs advanced charging features. If your priority is safe, reliable, and convenient charging, a dependable AC charger can fully meet your daily driving needs. Eco is designed to provide consistent home charging with simple operation, making it an excellent choice for first-time EV owners and households looking for an affordable charging solution.
2. Will Eco work with my electric vehicle?
Yes. Eco is compatible with most Type 2 electric vehicles and plug-in hybrid models available across Europe. Built according to international charging standards, it provides reliable AC charging for everyday home use while maintaining compatibility with current and future EV models.
3. Is Eco easy to install?
Eco is designed for straightforward residential installation. Its compact design allows electricians to install it efficiently in garages, driveways, or private parking spaces. Depending on local electrical conditions, installation requirements may vary, but its simple architecture helps reduce installation time and overall project complexity.
4. Is a lower-cost charger still reliable?
Absolutely. Choosing an affordable charger does not mean compromising on safety or reliability. Eco is engineered to deliver stable charging performance using high-quality components while meeting relevant electrical safety standards. It provides homeowners with a dependable charging solution without paying for features they may never use.
5. What should I consider before buying my first home EV charger?
When selecting a home charger, consider compatibility with your vehicle, installation requirements, safety certifications, ease of use, and long-term reliability rather than focusing only on charging speed. Eco is designed to balance affordability, quality, and everyday practicality, making it an ideal entry-level home charging solution for most residential users.
