Injet Swift 2.0 Smart

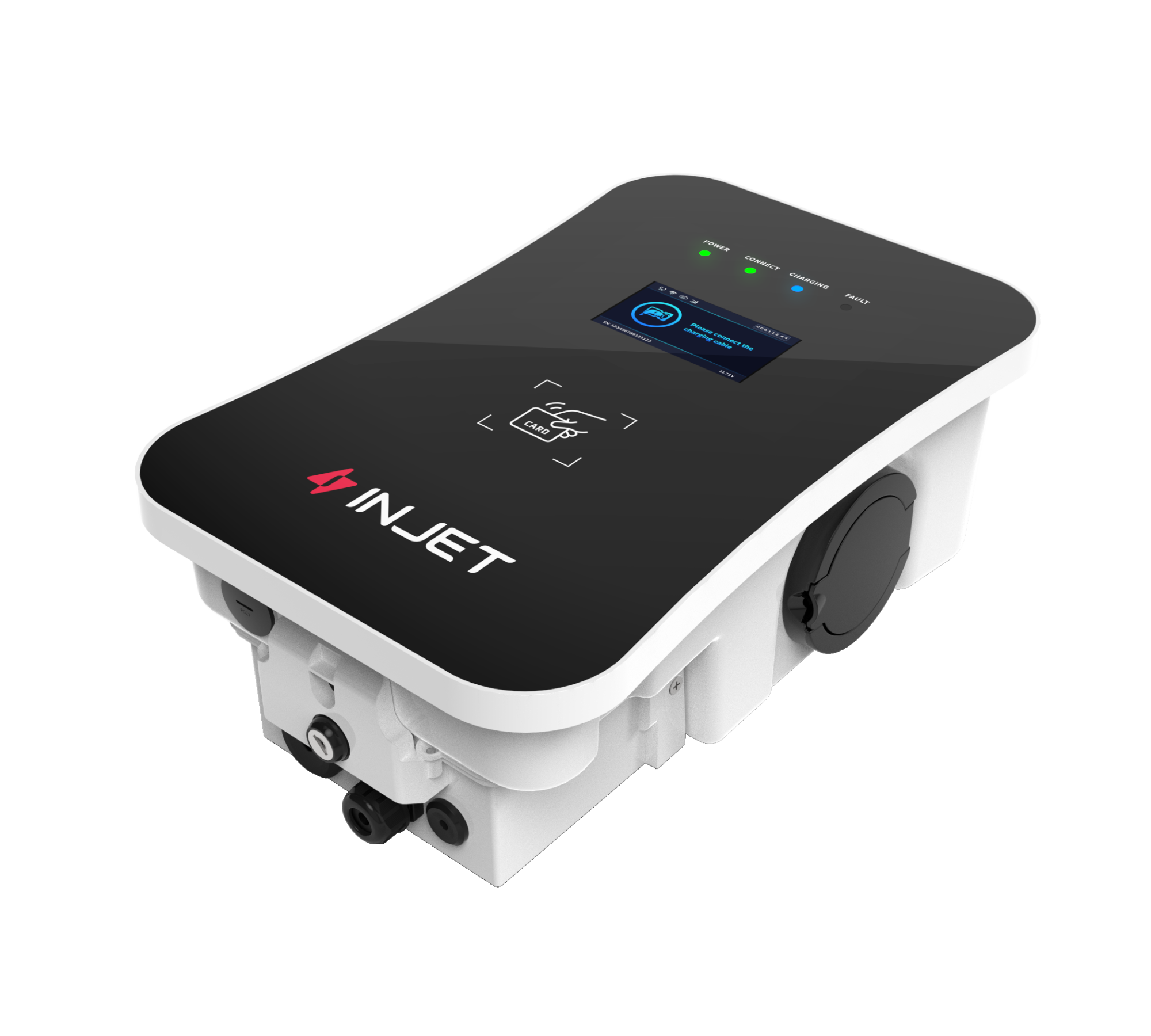

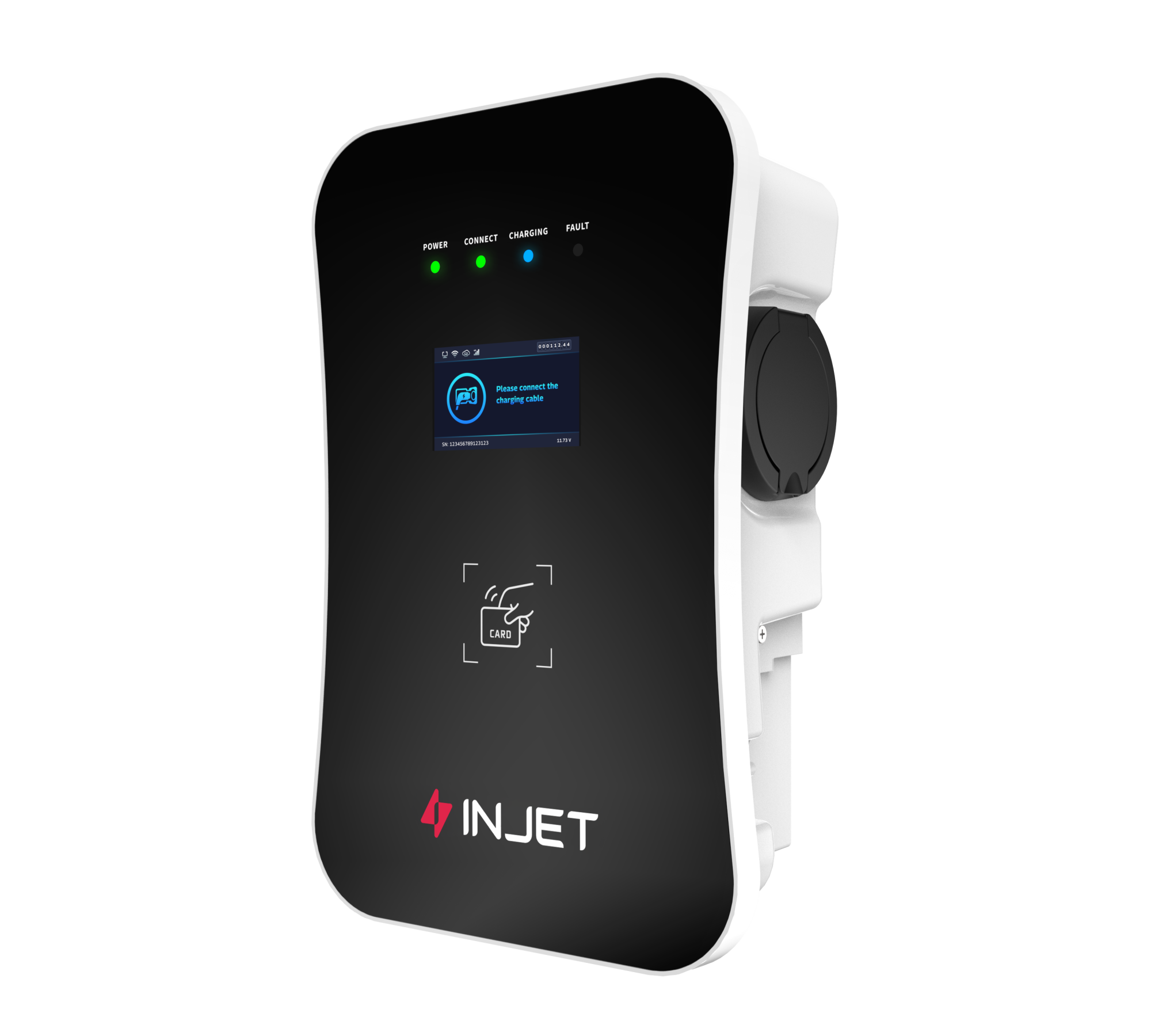

The Injet Swift 2.0 Smart is a versatile smart AC EV charger designed for homes, apartment buildings, workplaces, hotels, and destination charging. Featuring Injet's innovative separate hub design, intelligent energy management, and seamless Plug & Charge functionality, Swift 2.0 Smart makes everyday EV charging simple, efficient, and ready to grow with your future energy needs.
Product advantages
Installation & Everyday Reliability
Smart Energy Management
Everyday Convenience
Click-to-Install Hub DesignThe innovative two-piece design allows electricians to install the wall-mounted hub first before simply attaching the charger, reducing installation time and simplifying future upgrades.
Easy MaintenanceThe charging unit can be replaced without disconnecting fixed wiring, reducing maintenance effort and minimizing disruption throughout the product lifecycle.
Built for Indoor & Outdoor UseAn IP65 and IK10 enclosure protects the charger against rain, dust, and impact, ensuring dependable operation across residential and commercial environments.
Dynamic Load BalancingPower Boost, Eco, and Eco+ modes intelligently balance household or building power usage to maximize charging performance while preventing overloads.
Solar Surplus ChargingAutomatically prioritizes excess solar generation to maximize self-consumption and lower electricity costs.
Intelligent Power SharingCoordinate charging across up to 10 chargers, distributing available power automatically to improve efficiency where electrical capacity is limited.
Plug & Charge SimplicityStart charging instantly with Plug & Charge or choose RFID cards, mobile app control, and scheduled charging for additional flexibility.
Smart ConnectivityIntegrated WiFi 6, Bluetooth, Ethernet, and OTA software updates keep your charger connected and continuously improving through the Injet mobile app.
Flexible for Every PropertyAvailable in 7kW, 11kW, and 22kW configurations with single-phase and three-phase options, Swift 2.0 Smart adapts to homes, apartments, workplaces, hotels, and mixed-use developments.
specification
Download the Injet datasheets
Acess the ful technicaldocumentation for the HanYuan distributed charging system, including power cabinet and dispenserspecifications, dimensions,connector options,and installation requirements.
Download Datasheets
Basic Info
| Maximum Power | 7kW/32A@230VAC 11kW/16A@400VAC 22kW/32A@400VAC |
| Tethered / Untethered | Optional |
| Plug & Cable | Type 2 with 5/7.5 Meters Cable |
| Dimension (H*W*D, mm) | 416*266*150 |
| Material | Tempered Glass Front + Metal Plate Black |
| Colour | Black Front + White Back |

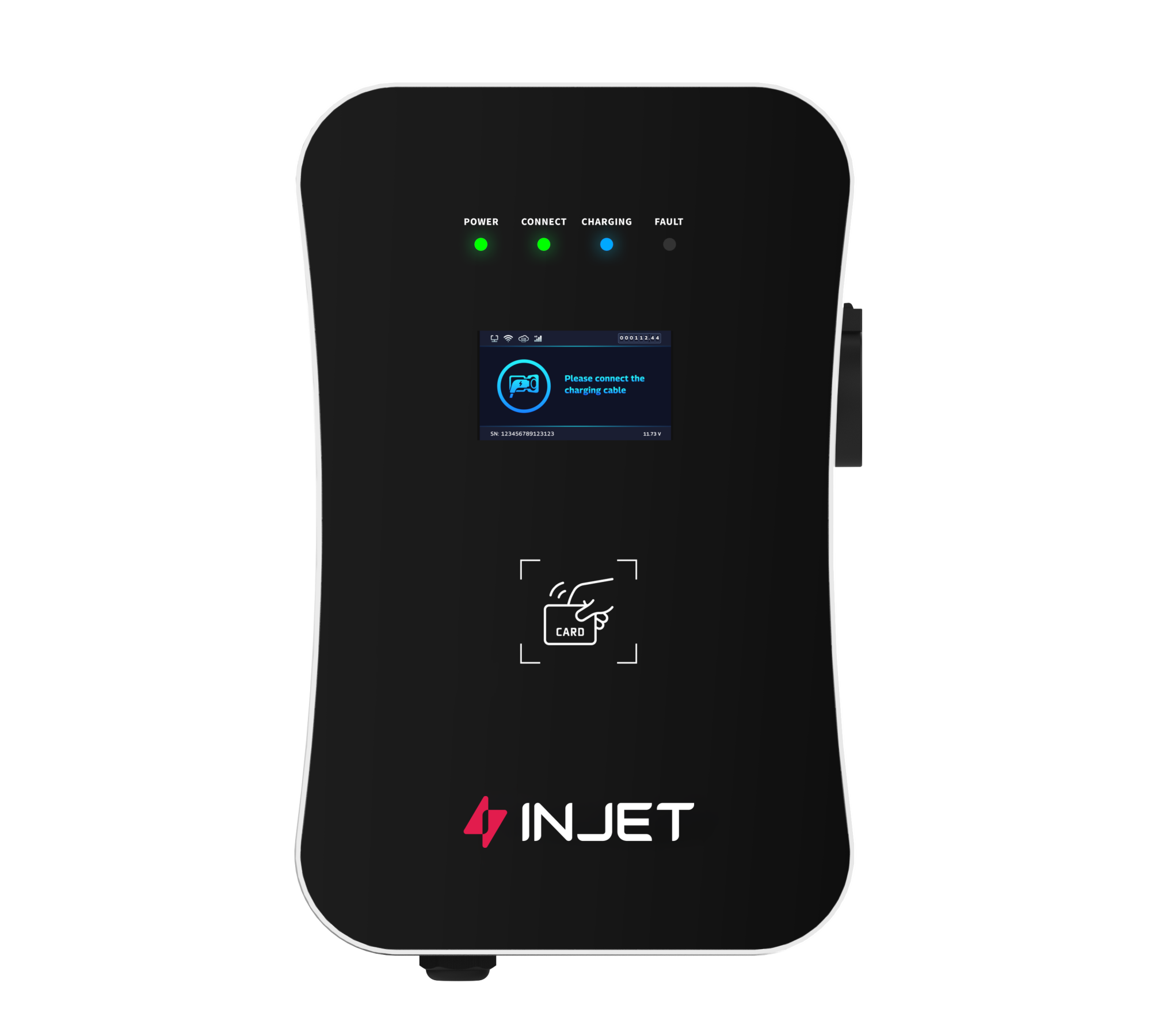

| Indicator & Display | 4.3-inch LCD with 4 indicating lights |
Safety
| Ingress Protection | IP65, IK10 |
| Residual Current Protection | Type A 30mA+DC 6mA |
| Certification | CE(LVD,RED),RoHS |
| Certification Standard | EN IEC 61851-1,EN IEC 61851-21-2 |
| Protection | Residual Current Protection/Over Load Protection/Over/Under Voltage Protection/Short Circuit Protection/Earth Leakage Protection/Ground Protection/Surge Protection/Over Temperature |
Others
| RS485 | Yes |
| OCPP 1.6J | Yes,ready for OCPP2.0.1 |
| Dynamic Load Balancing | Yes,optional APCC-1R/3R (Load balancing controller produced by Injet)required or external smart meter |
| PV Surplus Charging | Yes, Compatible With External Smart Meter |
| Measurement | On-board Metering |
cases
content hub
More
2026-02-21
EV Charger Voltage & Current: The Complete Technical Guide to Input/Output Specs
Learn Detail
2025-01-02
The Multiple Protection Design of Charging Piles：Ensuring the Safety of Charging Equipment and Users
Learn Detail
related products
Injet Swift 2.0 Smart
Injet Swift 2.0 Business
Injet Vision Pro
FAQ
1. How can I reduce the cost of charging my EV at home?
One of the easiest ways to lower charging costs is to schedule charging during off-peak electricity hours. Swift Smart allows users to manage charging schedules through a smart app, helping homeowners take advantage of lower electricity rates while ensuring their vehicle is fully charged when needed.
2. Can Swift Smart work with solar power systems?
Yes. Swift Smart is designed to support smarter home energy use and can be integrated into households equipped with solar PV systems. By coordinating EV charging with renewable energy generation, homeowners can maximize self-consumption of solar power, reduce reliance on grid electricity, and improve overall energy efficiency.
3. Will Swift Smart work with my electric vehicle?
Swift Smart is compatible with most Type 2 electric vehicles available across Europe. Whether you drive a passenger EV or a plug-in hybrid, the charger is designed to deliver safe, reliable AC charging while supporting industry-standard communication and safety requirements.
4. Do I need a smart charger for home EV charging?
A smart charger offers significantly more flexibility than a basic charger. Features such as scheduled charging, remote control, charging history, and energy management help homeowners optimize electricity usage while making everyday charging more convenient. Swift Smart combines these intelligent features with a simple, user-friendly charging experience.
5. Can I control my charger remotely?
Yes. Swift Smart supports remote monitoring and control through a mobile application, allowing users to start or stop charging, schedule charging sessions, check charging status, and manage their charger from virtually anywhere. This provides greater flexibility and helps homeowners stay in control of both charging performance and electricity costs.
