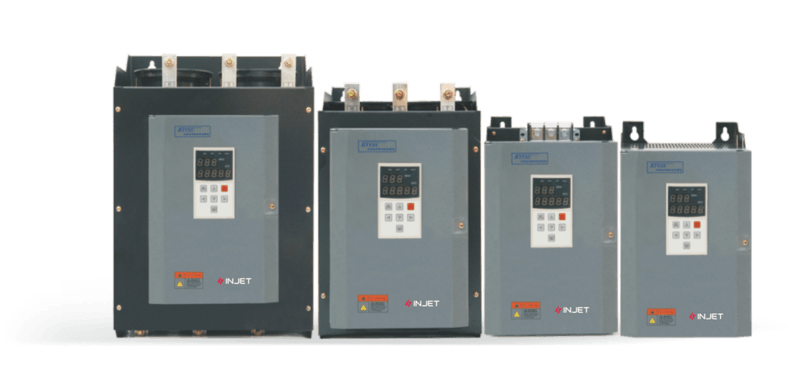

KTY Series Single-phase Power Controller
KTY series single-phase power controller is a product with powerful functions, rich interfaces and flexible programming of internal parameters. Products are widely used in industrial electric furnaces, mechanical equipment, glass industry, automobile industry, chemical industry and other industries.
Features
● Full digital control, high stability
● Integrate the functions of open loop, constant voltage, constant current, constant power, power regulation (zero-crossing) control, LZ (phase-shifting zero-crossing) control, online power distribution, etc.
● With true RMS voltage and current acquisition function, active power control
● With multi-channel switch and analog programming interface
● Isolation technology is used for input and output interfaces, with strong anti-interference ability
● When the power is adjusted, the power can be distributed online to reduce the impact on the power grid
● Standard configuration RS485 communication interface
● Expandable PROFIBUS, PROFINET, MODBUS TCP communication option card
● Heavy load design, strong overload capacity
● Integrate the functions of open loop, constant voltage, constant current, constant power, power regulation (zero-crossing) control, LZ (phase-shifting zero-crossing) control, online power distribution, etc.
● With true RMS voltage and current acquisition function, active power control
● With multi-channel switch and analog programming interface
● Isolation technology is used for input and output interfaces, with strong anti-interference ability
● When the power is adjusted, the power can be distributed online to reduce the impact on the power grid
● Standard configuration RS485 communication interface
● Expandable PROFIBUS, PROFINET, MODBUS TCP communication option card
● Heavy load design, strong overload capacity
The main parameters
| Parameter | KTY1S Single-Phase Power Controller | KTY3S Three-Phase Power Controller |
|---|---|---|
| Input | ||
| Main Circuit Power Supply | AC220V / AC380V / AC500V / AC690V, 30-65Hz | 3ΦAC380V / 3ΦAC500V / 3ΦAC690V, 30-65Hz |
| Control Power Supply | AC100-400V, 0.5A, 50/60Hz | AC100-240V, 0.5A, 50/65Hz |
| Fan Power Supply | AC220V, 50/60Hz | |
| Output | ||
| Rated Voltage | 0-98% of the main circuit power supply voltage (phase-shift control) | |
| Rated Current | 25-3000A | |
| Control Characteristics | ||
| Control Mode | Open-loop control, constant voltage, constant current, constant power, zero-crossing power regulation, LZ control | |
| Additional Control Function | Online power distribution | |
| Control Signal | Analog, digital, communication | |
| Load Type | Resistive load, inductive load | |
| Performance Index | ||
| Control Accuracy | ≤1% | |
| Stability | ≤0.2% | |
| Interface Description | ||
| Analog Input | 4 programmable inputs | 5 programmable inputs |
| Switching Input | 1 fixed input and 2 programmable inputs | 1 fixed input and 4 programmable inputs |
| Analog Output | 2 programmable outputs | 4 programmable outputs |
| Switching Output | 2 programmable outputs | 4 programmable outputs |
| Standard Communication | Standard RS485 interface supporting Modbus RTU | |
| Optional Communication | Single or dual Profibus-DP communication; PROFINET communication | Modbus TCP, Profibus-DP and PROFINET communication |
