TPH Series Single-phase Power Controller

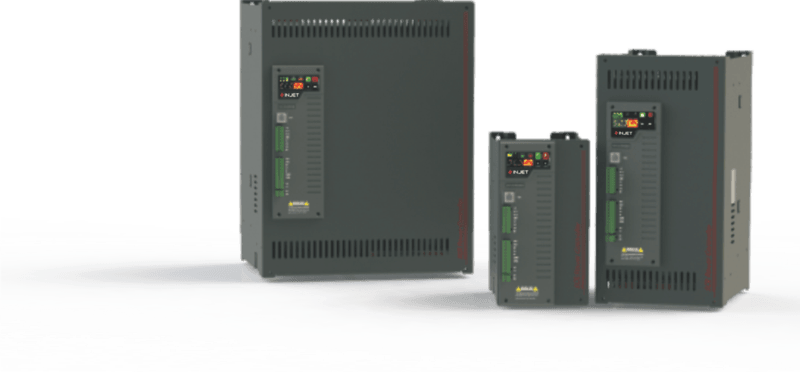

The TPH10 series power controller is a feature-rich and cost-effective product with a narrow body design to save lateral space in the cabinet. The advanced second-generation online power distribution technology greatly alleviates the current impact on the power grid. The products are widely used in float glass, kiln glass fiber, annealing furnace and various other industrial electric furnaces.
Features
● Full digital control, high precision and high stability
● With RMS and average value control
● With a variety of control options
● Support Yingjie Electric's second-generation patented power distribution option, effectively reducing the impact on the power grid and improving the security of power supply
● LED keyboard display, easy to operate, support keyboard display external reference
● Narrow body design, compact structure, easy installation
● Standard modbus RTU communication, optional Profibus-DP, PROFINET communication gateway
● With RMS and average value control
● With a variety of control options
● Support Yingjie Electric's second-generation patented power distribution option, effectively reducing the impact on the power grid and improving the security of power supply
● LED keyboard display, easy to operate, support keyboard display external reference
● Narrow body design, compact structure, easy installation
● Standard modbus RTU communication, optional Profibus-DP, PROFINET communication gateway
The main parameters
| Parameter | TPH10 Series Single-Phase Power Controller | TPH10 Series Three-Phase Power Controller |
|---|---|---|
| Input | ||
| Main Circuit Power Supply | AC230V / AC400V / AC500V / AC690V, 50/60Hz | 3ΦAC230V / 3ΦAC400V / 3ΦAC500V / 3ΦAC690V, 50/60Hz |
| Control Power Supply | AC110-240V, 20W | |
| Fan Power Supply | AC115V / AC230V, 50/60Hz | |
| Output | ||
| Rated Voltage | 0-98% of the main circuit power supply voltage (phase-shift control) | |
| Rated Current | 25-1000A | |
| Control Characteristics | ||
| Operating Mode | Phase-shift triggering, fixed-period power regulation, variable-period power regulation | |
| Control Mode | α, U, I, U², I², P | |
| Control Signal | Analog, digital, communication | |
| Load Type | Resistive load, inductive load | |
| Performance Index | ||
| Control Accuracy | 1% | |
| Stability | ≤0.2% | |
| Interface Description | ||
| Analog Input | 2 channels: AI1, DC 4-20mA; AI2, DC 0-5V / DC 0-10V | |
| Switching Input | 3 normally open inputs | |
| Analog Output | 2 channels: DC 4-20mA / DC 0-20mA | |
| Switching Output | 1 normally open output | |
| Communication | Standard RS485 interface supporting Modbus RTU; expandable Profibus-DP and PROFINET communication gateways |
