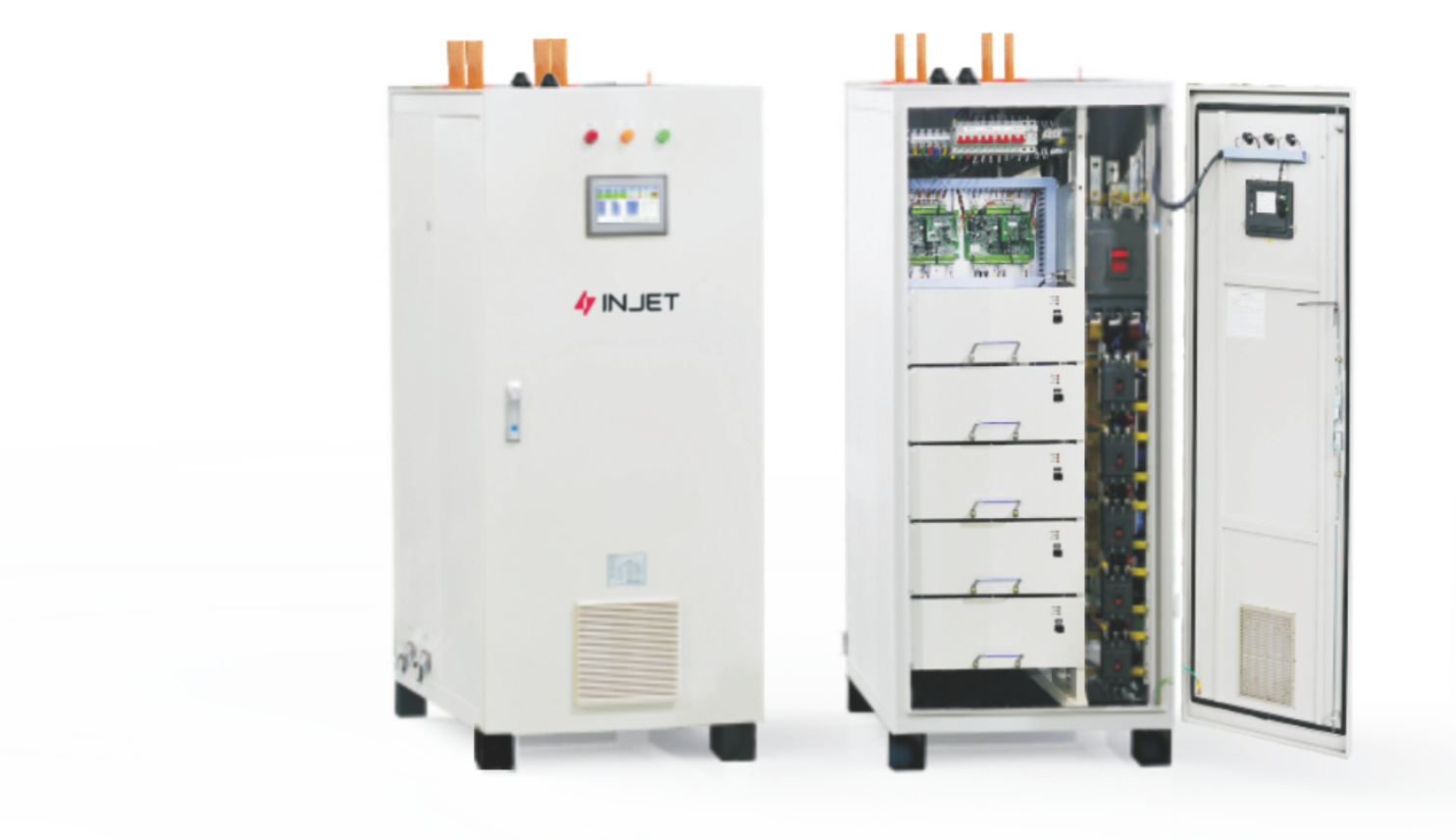

DD series DC power supply adopts modular design, and realizes high-power, high-current output technology-leading power supply through multi-module parallel connection. The system can adopt N+1 redundancy design, which greatly improves the system reliability. Products are widely used in crystal growth, optical fiber preparation, copper foil and aluminum foil, electrolytic plating and surface treatment.
● High stability
● High conversion efficiency
● High power factor
● High reliability
● Low noise, high protection level
● Constant voltage, constant current and constant power can be selected
● Drawer type installation, easy maintenance
● Support a variety of communication protocols, MODBUS RTU, MODBUS TCP, PROFIBUS, PROFINET, etc.
Input | Input voltage: 3ΦAC360V~500V(Special specifications can be customized) | |
Output | Output voltage: DC6V~800V(Special specifications can be customized) | Output current: DC100A~60000A(Special specifications can be customized) |
Performance index | Control accuracy: 0.5% | Stability: ≤0.1% |
Power factor: ≥0.96 | Conversion efficiency: 90%~94% | |
Control characteristic | Control mode: U、I、P | Setting mode: analog, digital, communication |
Protection function: overvoltage, overheating, overcurrent and water pressure protection | Communication: support a variety of communication protocols, such as Modbus RTU, Modbus TCP, PROFIBUS, PROFINET, etc.; | |
Others | Cooling mode: air cooling and water cooling | Dimension: customized according to customer requirements |
