Watch the video

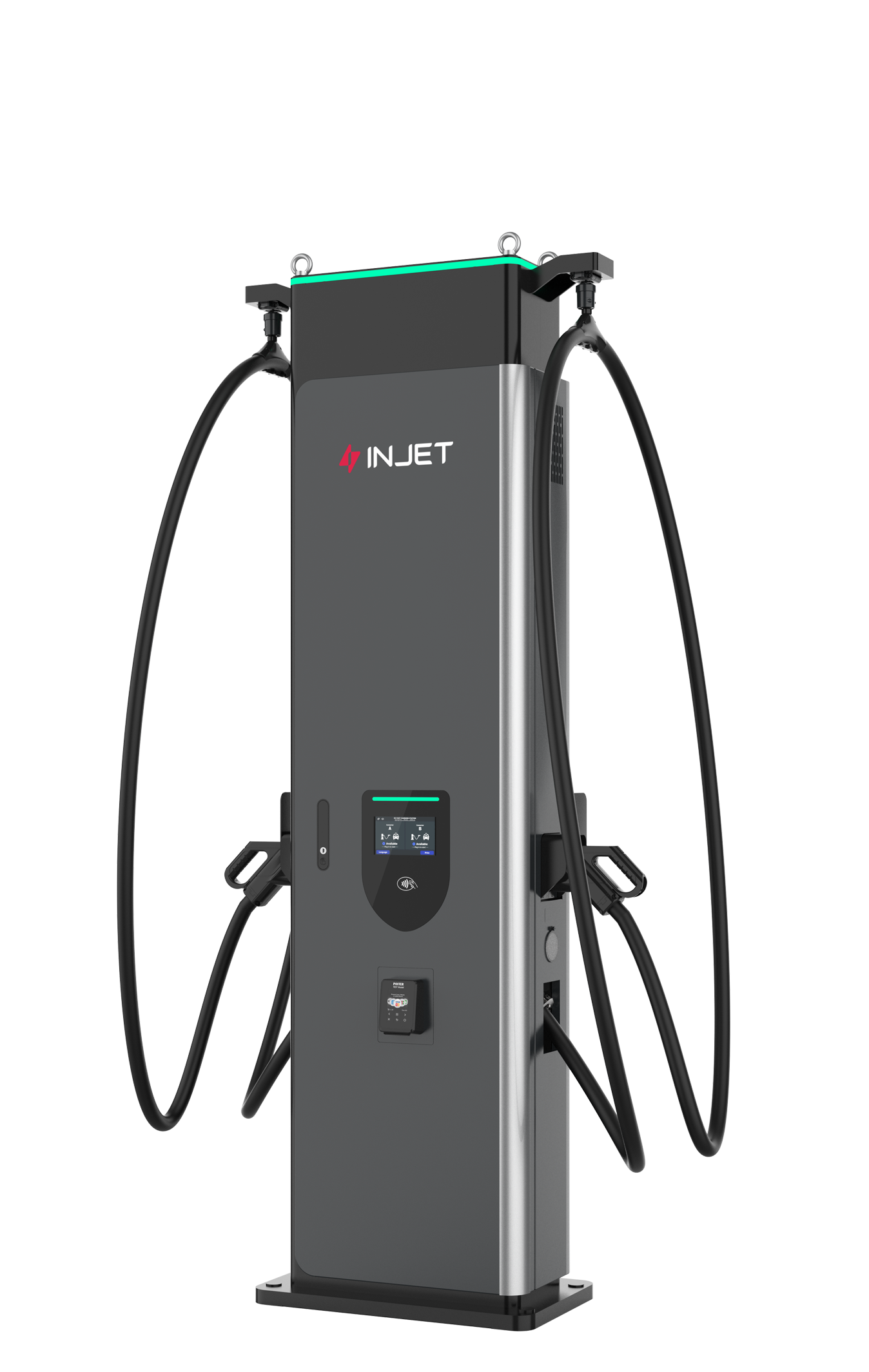

Injet HanYuan - Dispenser
The Dispenser is the point of contact between driver and the HanYuan Power Pool — compact, liquid-cooled, and engineered to deliver consistent high-power output drawn from the full capacity of the system, not a fixed allocation.
Product advantages
Charging Performance & Compatibility
Driver Experience
Built to Last
Liquid-Cooled Cable, Up to 600AEnables sustained high-power DC fast charging without the cable bulk or overheating limitations of air-cooled alternatives.
Draws From the Full Power PoolOutput isn't capped by what a single cabinet can deliver — the dispenser pulls from whatever capacity the site's shared power pool has available, maximizing throughput at every EV charging station.
NACS, CCS1, and CCS2 SupportOne dispenser platform serves the full range of vehicles across North American and global markets, with flexible connector configuration for mixed-fleet sites.
Cable Management ArmReduces the physical effort required to handle the charging cable, minimizing wear on the cable and making the experience easier for every driver.
Touchscreen Interface with Multilingual SupportIntuitive on-screen guidance available in multiple languages, removing friction for drivers across diverse markets and reducing reliance on staff assistance.
POS Payment SupportOptional point-of-sale payment hardware accommodates drivers without an app or RFID credential, keeping the charging station accessible to every visitor.
At-a-Glance Status IndicatorAn integrated LED status strip displays charging state at a distance, so drivers and depot staff can see availability and session status without walking up to the unit.
NEMA 3R Rated EnclosureCertified for reliable outdoor operation in line with North American electrical equipment standards, protecting internal components from rain, snow, and outdoor exposure.
IK10 Impact ResistanceThe highest level of mechanical protection against impact, making the dispenser a vandal-resistant EV charger suitable for high-traffic public and unattended sites.
Engineered for Unattended OperationBuilt to withstand the demands of 24/7 commercial EV charger deployment with minimal supervision required.
specification
Download the Injet datasheets
Acess the ful technicaldocumentation for the HanYuan distributed charging system, including power cabinet and dispenserspecifications, dimensions,connector options,and installation requirements.
Download Datasheets
Output
| Charging Interface | 1* CCS1/ 1* CCS2 / 1*GBT |
| Output DC Voltage Range | 150-1000V D |
| Maximum DC Curren | 500A |
| Cable Length | 5m/ 7.5m |
Input
| DC Curren | Up to 600 A per DC circuit |
| DC Circuits from Power Cabine | 1 |
| AC Supply | Three-phase AC provided by Power Cabinet |
| Communication with Power Cabinet | Ethernet |
Operating Conditions
| Operating Temperatur | -30°to+50° |
| Altitude | ＜2500m |
| Storage Temperature | -40°to+50° |
| Humidity | 10% - 95% relative (non-condensing) |
Installation | Indoor and outdoor |
| Type of Installation | Floor mounted on foundation |
| Ingress Protection | IP54 |
| Impact Protection | IK10; NEMA 3R |
Dimensions
| Dimension(H*W*D)mm | 2093*587*314 (without cable management) 2278*587*314 (5m cable reel) 2701*587*314 (7m cable reel) |
User interface
| User Interface | 10' HD LCD+ Emergency button (Optional) |
| User Authorization | APP, RFID card, QR code, Credit Card (Optional), PnC, MAC address |
| Language | English, French, Germany, Italian, Spanish |
| Accessibilit | Meets ADA, PAS 1899 Requirements |
Remote Management
| Remote Managemen | Diagnostics, software updates |
Certification & Standards
| Certification | (CE): CE (NA): CSA, FCC |
| Standard Protocol | IEC 61851-23, ISO 15118-2, DIN 70121 |
| RFID System | ISO 14443 |
cases
content hub
More
2026-06-18
Why Installed Power No Longer Defines Charging Performance: The Case for Inter-Cabinet Power Distribution
Learn Detail
2026-04-22
The Rise of the Distributed Charging System: Why the Future of EV Infrastructure Is Decentralized
Learn Detail
2026-01-23
Why Megawatt Charging Matters: Inside the MCS Standard for Heavy-Duty EV Charging
Learn Detail
related products
Injet HanYuan - Power Cabinet
Injet HanYuan - Dispenser
FAQ
1. What is the function of the HanYuan Charging Dispenser?
The HanYuan Charging Dispenser provides the user interface and charging connection for electric vehicles while receiving DC power from the centralized power cabinet. By separating the dispenser from the power conversion unit, the system reduces the footprint at each parking space and allows multiple dispensers to share available power more efficiently, delivering a better charging experience for both operators and drivers.
2. Can the HanYuan Dispenser charge multiple vehicles simultaneously?
Yes. Depending on the selected configuration, the HanYuan system supports multiple dispensers operating simultaneously. The centralized power cabinet intelligently allocates available power between connected vehicles according to their real-time charging demand, maximizing charging efficiency without requiring every dispenser to have dedicated power capacity.
3. Which charging connectors are available for the HanYuan Dispenser?
The HanYuan Dispenser can be configured with multiple charging standards to meet regional market requirements, including CCS1, CCS2, GB/T, and NACS. This flexibility allows charging operators to support a wide range of electric vehicles while preparing their infrastructure for future market developments.
4. Is the HanYuan Dispenser suitable for outdoor installation?
Yes. The HanYuan Dispenser is designed for demanding commercial environments and is suitable for both indoor and outdoor installations. Its robust enclosure, durable construction, and weather-resistant design enable reliable operation in public charging stations, fleet depots, commercial parking areas, and other high-frequency charging locations.
5. How does the dispenser improve the charging experience for EV drivers?
The HanYuan Dispenser is designed with a user-friendly interface, ergonomic connector handling, and intelligent charging control to provide a smooth charging experience. Combined with dynamic power allocation from the centralized power cabinet, drivers receive optimal charging performance without needing to manually select charging priorities or power levels.
6. Can additional dispensers be added without replacing the existing system?
Yes. One of the key advantages of the HanYuan Distributed Charging System is its scalability. Additional charging dispensers can be deployed as the charging network expands, while continuing to utilize the existing centralized power cabinet. This enables operators to increase the number of charging points with minimal infrastructure changes and lower expansion costs.
